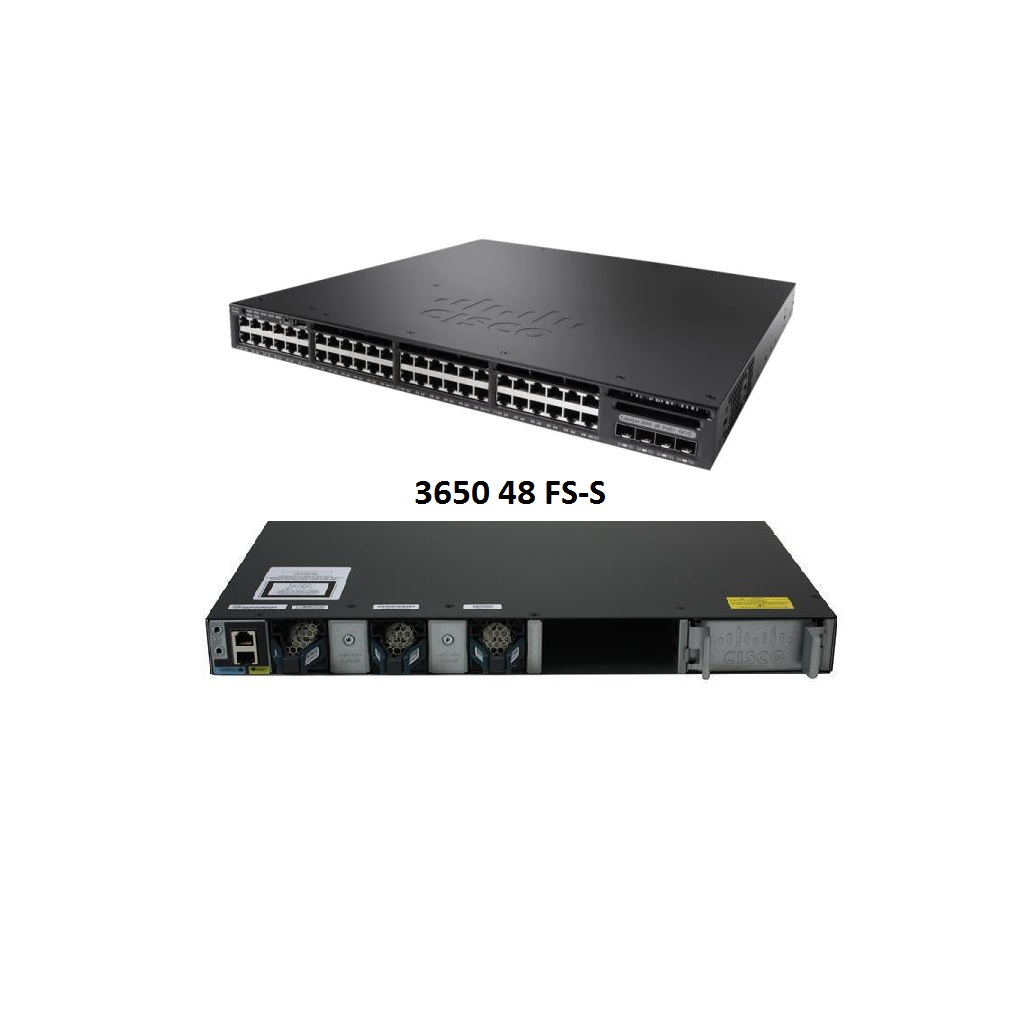

CISCO 3650 48 FS-E

WS-C3650-48FS-S Specification

Enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000 (POE+)  + 4 x 1G SFP

Network management Interface

· Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
· Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

775W

Switching Capacity

176Gbps

Maximum stacking number

9

Stack Bandwidth

160Gbps

Forwarding Performance

77.37Mpps

FNF entries

48000

Maximum VLANs IDs

4,094

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

50

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 40Gbps

Supported Aironet AP series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

 power redundant slot

Accessory & Rack Moubt Kits

· ACC-KIT-T1: Accessory kit
· RACK-KIT-T1: Rack mount kit
· 4PT-KIT-T1:Extension rails and brackets for four-point mounting

Stacking module & cable

· C3650-STACK-KIT: Stack Module
· STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
· STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
· STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length

Power supply

PWR-C2-1025WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone (in Watts)

109.4 (max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

19.125 Inches (48.6 cm)

Height

1.73 Inches (4.4 cm)

Shipping Weight

17.49 Kg

Rack Mounting Kit

optional

 MTBF in hours

383,760
